產品說明 Product Description

       CK61系列數控車床，通過數控系統自動控制，可進行各種不同的內孔、外圓、圓錐面、圓弧面以及螺紋的車削。適合于加工軸類零件和盤類零件。廣泛適用于鋼鐵、造紙行業以及用于大型設備的維修等。

       本機床床身采用高強度鑄鐵材料、樹脂砂造型；導軌采用矩形結構。床頭箱主傳動機構為專用交流變頻或伺服主軸電機拖動，床頭箱手動三級換檔，檔內無級調速。尾座快速移動機構由單獨電動機拖動。尾座頂尖既可用作活定尖，也可以用作死頂尖。機床的縱向采用齒輪齒條或滾珠絲杠傳動，橫向采用滾珠絲杠傳動，兩個方向均使用伺服電機驅動。數控系統根據客戶需求選配。

       數控臥式車床主要可承擔各種車削工作，能夠車削各種零件的外圓、端面、內孔、切槽、螺紋、R弧等工藝，同時也適用于硬質合金刀具進行強力車削，加工各種黑色金屬和有色金屬。

       機床主要大件采用國際先進的計算機技術及最優化的有限元分析方法進行設計，使機床盡可能承載最大的負荷，設計合理、選材考究。所有鑄件均采用高強度，高牌號的密烘鑄鐵為料型，使整個機床具有極佳的剛性、穩定性、精度保持性，特別適合重切削。所有大型鑄件都嚴格的退火處理后，再加上時效處理，徹底消除內應力，大大提高了整機精度，加工后的零件具有極好的幾何位精度，機床底座為十字形結構，矩形受力設計，組織穩定、可靠，保持性久。

       床身導軌采用矩形硬軌設計，導軌表面經高頻處理，經高精度表面研磨處理�；瑒颖砻嬲迟N導軌膠帶，使導軌表面更加光滑、耐磨。加寬的硬軌設計可以確保提供機床在重切削時所需之抵抗力及穩定性。

       機床主軸采用三支承結構，具有很好的剛度；機床采用側排屑方式，排屑方便。機床還具有單獨油泵，強制潤滑，以及快速移動、終端保險等功能。轉速、進給量和功率特性等設計合理，均能很好地滿足粗精加工需要。機床具有剛性強、效率高、節能、安全可靠、操作方便和造型美觀等特點。

    CK61 series Horizontal CNC Lathe is automatically controlled to realize different machining processes like inner hole, outer circle, conical surface, circular arc surface and threading. It is very suitable for machining shaft and disc parts, and widely used for steel & paper manufacture industries and the maintenance of large equipment. The machine bed adopts high-strength casting materials and resin sand molding. The guide rail adopts rectangle structure. The main driving mechanism of the headstock is driven by special AC frequency conversion or servo spindle motor.The tailstock fast moving mechanism is pulled by a separate motor.The tailstock tip can be used as either a live or a dead tip.The machine tool longitudinal direction is driven by the rack and pinion or ball screw, while the horizontal direction is driven by the ball screw , Both of horizontal and longitudial directions are driven by servo motor.

     Horizontal CNC Lathe can realize various turning processes, such as the outer circle, end face, inner hole, cutting groove, thread, R arc and other processes, it is also suitable for hard alloy tools for strong turning, processing a variety of ferrous and non-ferrous metals.

    The main part of the machine tool uses the international advanced computer technology and the optimization finite element analysis method,which make the lathe has a large load capacity, the design is reasonable, the material choice is exquisite.All castings are made of high strength and high grade Meehanite cast iron, which makes the machine tool has excellent rigidity, stability and accuracy, especially suitable for heavy cutting.All large castings are strictly done by the annealing heat-treatment, coupled with aging treatment, completely eliminate the internal stress, greatly improve the accuracy of the machine, processed parts have excellent geometric precision, the machine base for the cross structure, rectangular stress design, stable organization, reliable, long retention.

    The Machine bed guide adopts rectangular hard rail design, The guide surface is done by high frequency and high precision surface grinding treatment.The sliding surface is pasted with guideway tape, which makes the guideway surface more smooth and wear-resistant.The widened hard rail design ensures the resistance and stability required for heavy cutting.

    This machine adopts three supporting structure with good rigidity. Designing flexible lateral chip removal system with good performance. This machine is equipped with separate oil pump with excellent lubrication. The tailstock movement adopts mechanical device with reasonable rotation speed, feed rate and power. This kind of lathe has high rigidity, efficiency, energy-saving, easy operation and attractive appearance.

  產品實拍  Product Pictures

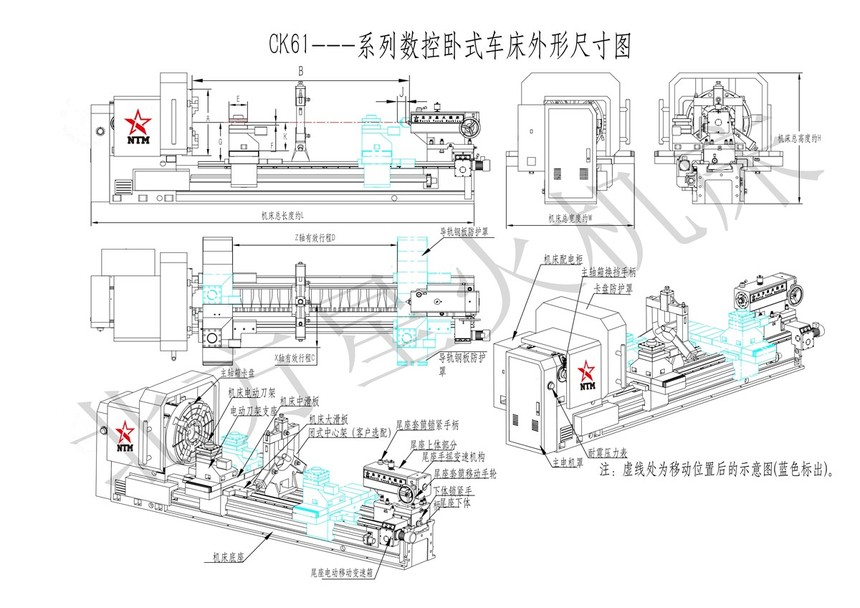

  產品尺寸 Product Dimensions
